Since 1927, New Process Fibre has served as an industry leader in custom stamping and manufacturing. Our experienced team is always searching for advanced technologies in plastic stampings that will fulfill our customers’ ever-increasing demands for non-metallic stamped products with a range of new applications and processes.
This commitment to innovation guarantees the highest quality stamped parts from a variety of materials, especially our G-10 FR4 NEMA Grade material non-metallic washers and plastic stampings. New Process Fibre uses this material as an alternative to metal products when stamping our epoxy glass flat washers and epoxy glass spacers. The end result is high-performance, cost-effective custom components that have substantial benefits for numerous applications.

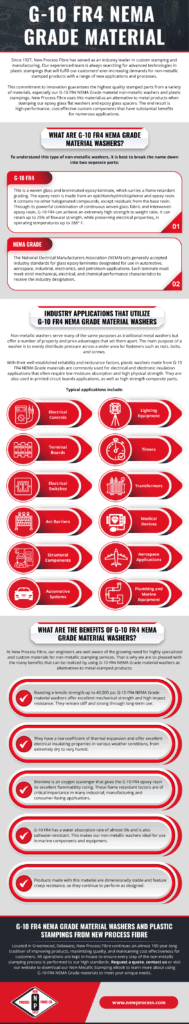

What are G-10 FR4 NEMA Grade Material Washers?
To understand this type of non-metallic washers, it is best to break the name down into two separate parts:
G-10 FR4
This is a woven glass and brominated epoxy laminate, which carries a flame retardant grading. The epoxy resin is made from an epichlorohydrin/bisphenol and epoxy resin. It contains no other halogenated compounds, except residuals from the base resin. Through its powerful combination of continuous woven glass fabric and interwoven epoxy resin, G-10 FR4 can achieve an extremely high strength to weight ratio. It can retain up to 25% of flexural strength, while preserving electrical properties, in operating temperatures up to 266° F.
NEMA Grade
The National Electrical Manufacturers Association (NEMA) sets generally accepted industry standards for glass epoxy laminates designated for use in automotive, aerospace, industrial, electronics, and petroleum applications. Each laminate must meet strict mechanical, electrical, and chemical performance characteristics to receive the industry designation.
Industry Applications that Utilize G-10 FR4 NEMA Grade Material Washers
Non-metallic washers serve many of the same purposes as traditional metal washers but offer a number of property and price advantages that set them apart. The main purpose of a washer is to evenly distribute pressure across a wider area for fasteners such as nuts, bolts, and screws.
With their well-established reliability and endurance factors, plastic washers made from G-10 FR4 NEMA Grade materials are commonly used for electrical and electronic insulation applications that often require low moisture absorption and high physical strength. They are also used in printed circuit boards applications, as well as high strength composite parts. Typical applications include:
- Electrical controls
- Lighting equipment
- Terminal boards
- Timers
- Electrical switches
- Transformers
- Arc barriers
- Medical devices
- Structural components
- Aerospace applications
- Automotive systems
- Plumbing and marine equipment
What are the Benefits of G-10 FR4 NEMA Grade Material Washers?
At New Process Fibre, our engineers are well aware of the growing need for highly specialized and custom materials for non-metallic stamping services. That is why we are so pleased with the many benefits that can be realized by using G-10 FR4 NEMA Grade material washers as alternatives to metal-stamped products:
- Boasting a tensile strength up to 40,000 psi, G-10 FR4 NEMA Grade material washers offer excellent mechanical strength and high impact resistance. They remain stiff and strong through long-term use.
- They have a low coefficient of thermal expansion and offer excellent electrical insulating properties in various weather conditions, from extremely dry to very humid.
- Bromine is an oxygen scavenger that gives the G-10 FR4 epoxy resin its excellent flammability rating. These flame retardant factors are of critical importance in many industrial, manufacturing and consumer-facing applications.
- G-10 FR4 has a water absorption rate of almost 0% and is also saltwater-resistant. This makes our non-metallic washers ideal for use in marine components and equipment.
- Products made with this material are dimensionally stable and feature creep resistance, so they continue to perform as designed.
Based on its noted strength, reliability, safety, and consistency factors, G-10 FR4 NEMA Grade material can be an excellent choice for many applications. Talk to the team at New Process Fibre to determine whether the thermal, physical, electrical, and mechanical qualities of G-10 FR4 NEMA Grade material are suitable for your project. Once we have determined how best to meet your specific needs, our state-of-the-art non-metallic stamping processes will then enable you to quickly receive high-precision, cost-effective custom components.
Electrical Isolation in Demanding Assemblies
Many applications require washers and spacers that do more than distribute load across a fastening surface. In electrical systems, components may also need to separate conductive parts, prevent unintended electrical contact, and maintain consistent performance across varying environmental conditions.
G-10 FR4 material is commonly selected for assemblies where electrical insulation and mechanical support must be provided by the same component. These requirements are frequently encountered in equipment containing power distribution systems, control panels, transformers, and electronic assemblies where reliable separation between conductive elements is important.
Replacing Metal Components with Composite Materials
Engineers often evaluate non-metallic alternatives when metal parts introduce challenges related to weight, conductivity, corrosion, or environmental exposure. Composite laminate materials can provide a combination of mechanical strength and electrical insulation that may not be achievable with traditional metallic components.
Common reasons for evaluating composite washers and spacers include:
- Electrical isolation requirements
- Weight reduction goals
- Corrosion concerns
- Moisture exposure
- Reduced maintenance requirements
- Dimensional consistency
- Flame-retardant requirements
- Environmental durability
- Need for compressive strength
Reviewing these requirements during material selection can help determine whether a composite laminate material is appropriate for the application.
Custom Fabrication for Application-Specific Requirements
Not every assembly can utilize a standard washer size or stock insulating component. Custom fabrication allows parts to be produced according to project-specific dimensions, material requirements, and performance objectives.
Custom fabricated components may include:
- Insulating washers
- Precision spacers
- Electrical barriers
- Terminal board components
- Custom laminations
- Insulating bushings
- Specialty stamped shapes
- Application-specific composite parts
These components can be manufactured according to customer drawings, specifications, or performance requirements.
Frequently Asked Questions
What Is G-10 FR4 Material Commonly Used For?
G-10 FR4 is commonly used for electrical insulation components, spacers, washers, structural supports, and other applications requiring a combination of mechanical strength and electrical performance.
Why Are Composite Washers Used in Electrical Applications?
Composite washers can provide electrical isolation while also serving as structural components within the assembly.
Can G-10 FR4 Components Be Manufactured to Custom Dimensions?
Yes. Custom washers, spacers, insulating components, and specialty stamped parts can be manufactured according to project-specific requirements.
How Does G-10 FR4 Compare to Metal Components?
Depending on the application, G-10 FR4 may offer advantages such as electrical insulation, reduced weight, corrosion resistance, and dimensional stability.
G-10 FR4 NEMA Grade Material Washers and Plastic Stampings from New Process Fibre
Located in Greenwood, Delaware, New Process Fibre continues an almost 100 year-long tradition of improving products, maximizing quality, and maintaining cost-effectiveness for customers. All operations are kept in-house to ensure every step of the non-metallic stamping process is performed to our high standards. Request a quote, contact us or visit our website to download our Non-Metallic Stamping eBook to learn more about using G-10 FR4 NEMA Grade materials to meet your unique needs.
